CXTM API

In this section, you'll use CXTM's embedded interactive API documentation to make the same API call to execute a batch that was used in your pipeline.

Step 1 - Locate CXTM's REST API documentation

In the left sidebar navigation menu:

1. Scrolldown until you locate the heading Documentation

Step 2 - Open the swagger API Documentation

In the left sidebar navigation menu:

1. Click on REST API

The REST API documentation page will open in a new browser window.

Step 3 - Authorize with your CXTM API Key

From the swagger page:

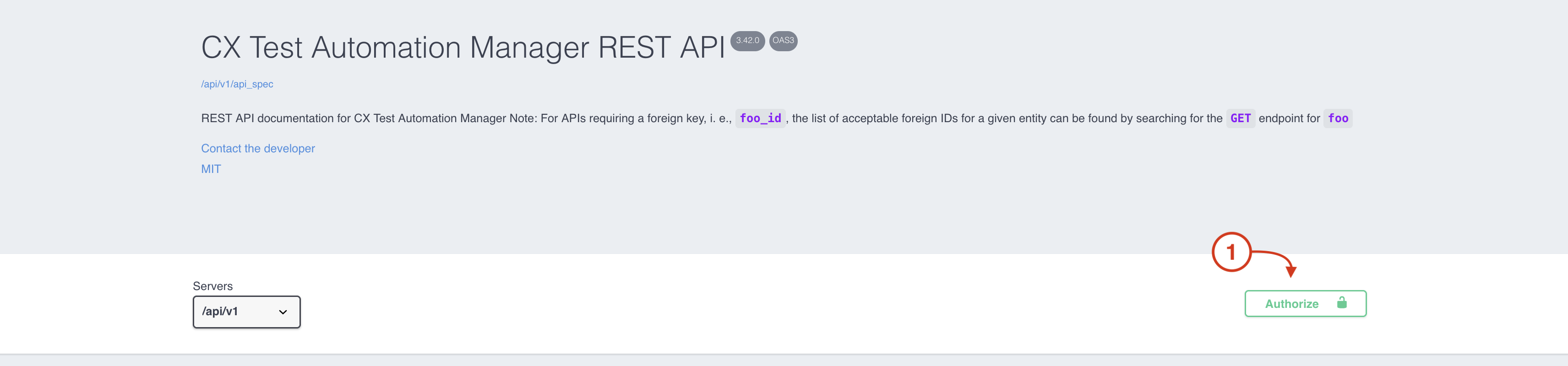

1. Click on the Authorize button

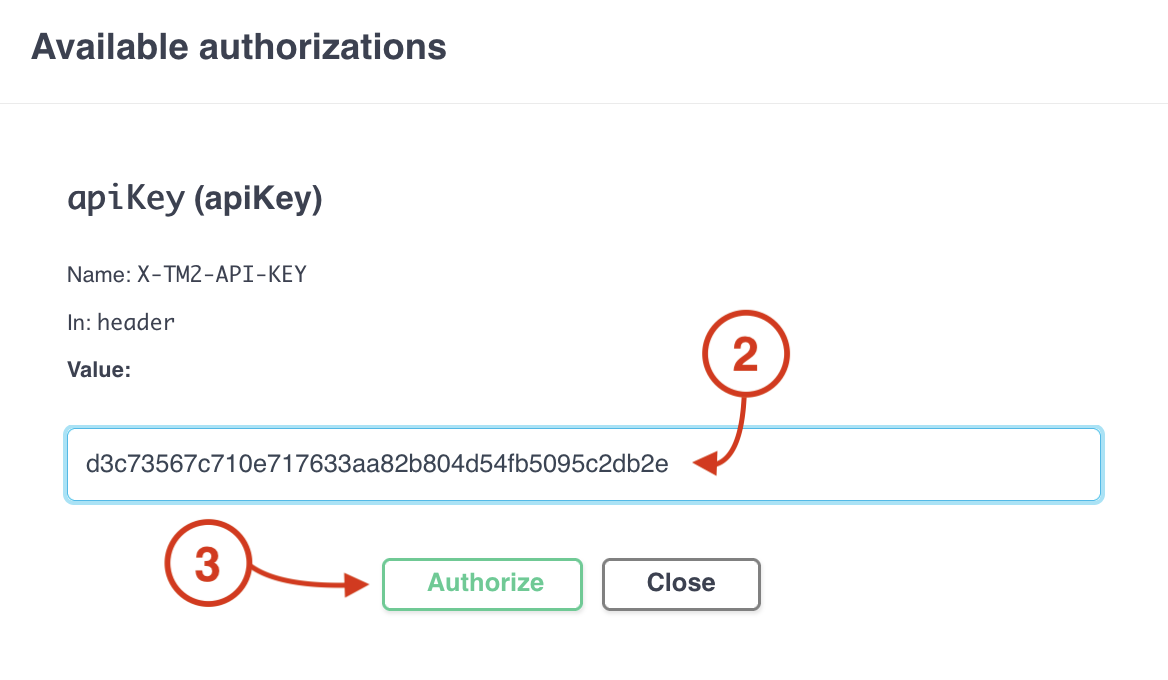

Enter your CXTM API Key

Note: if you didn't save your API Key generated during the Create CXTM Pipeline Script section, return to that section to recall how to return to Manage Profile to delete your API Key and generate a new one.


Click the Authorize button

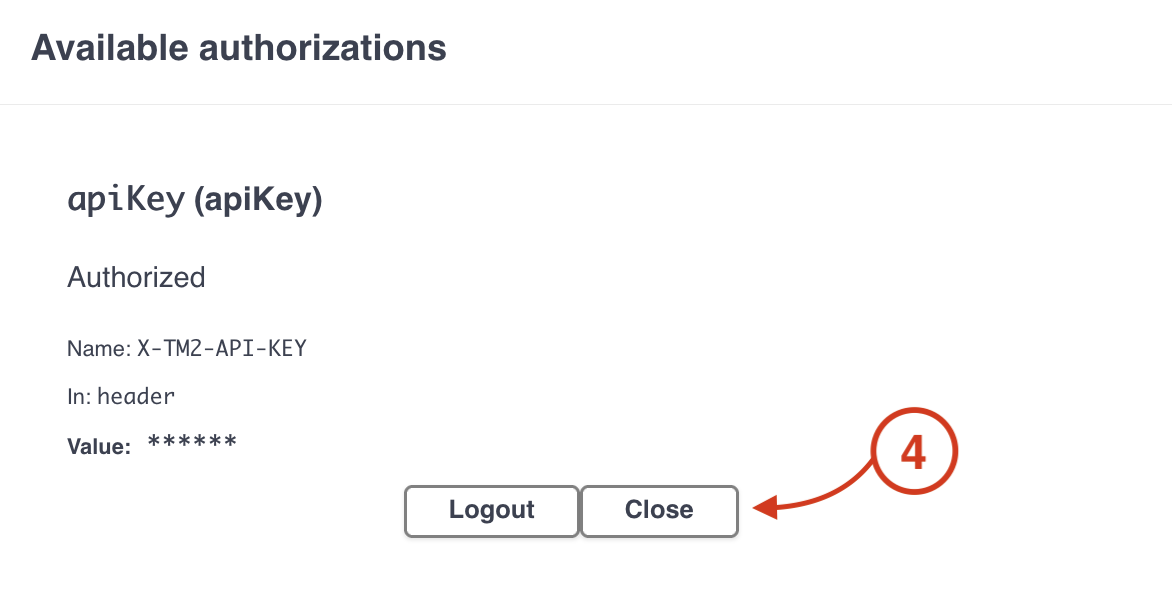

Click the Close button

Step 4 - Locate the API endpoint to run a batch

The API endpooint used to run the batches used in the pre-tests and post-test stages of your pipeline is /batches/{_batch_id}/run
From the swagger page:

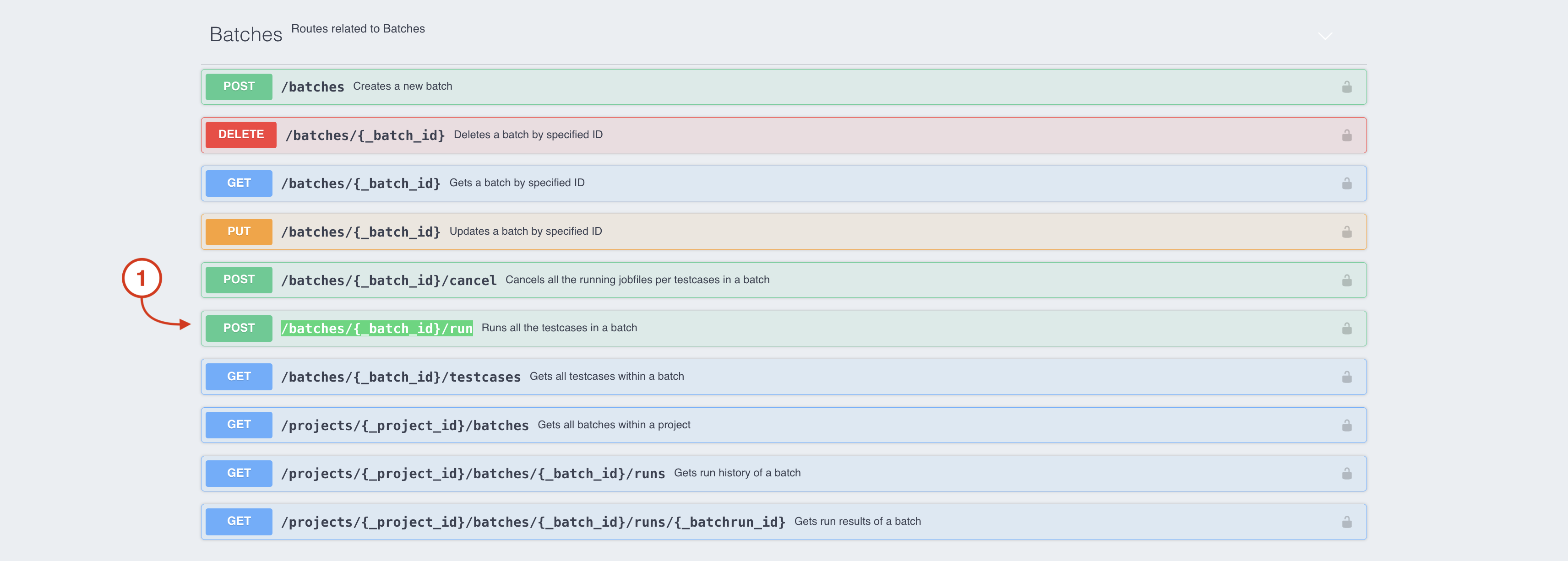

1. use Ctrl+F to search for /batches/{_batch_id}/run on the page

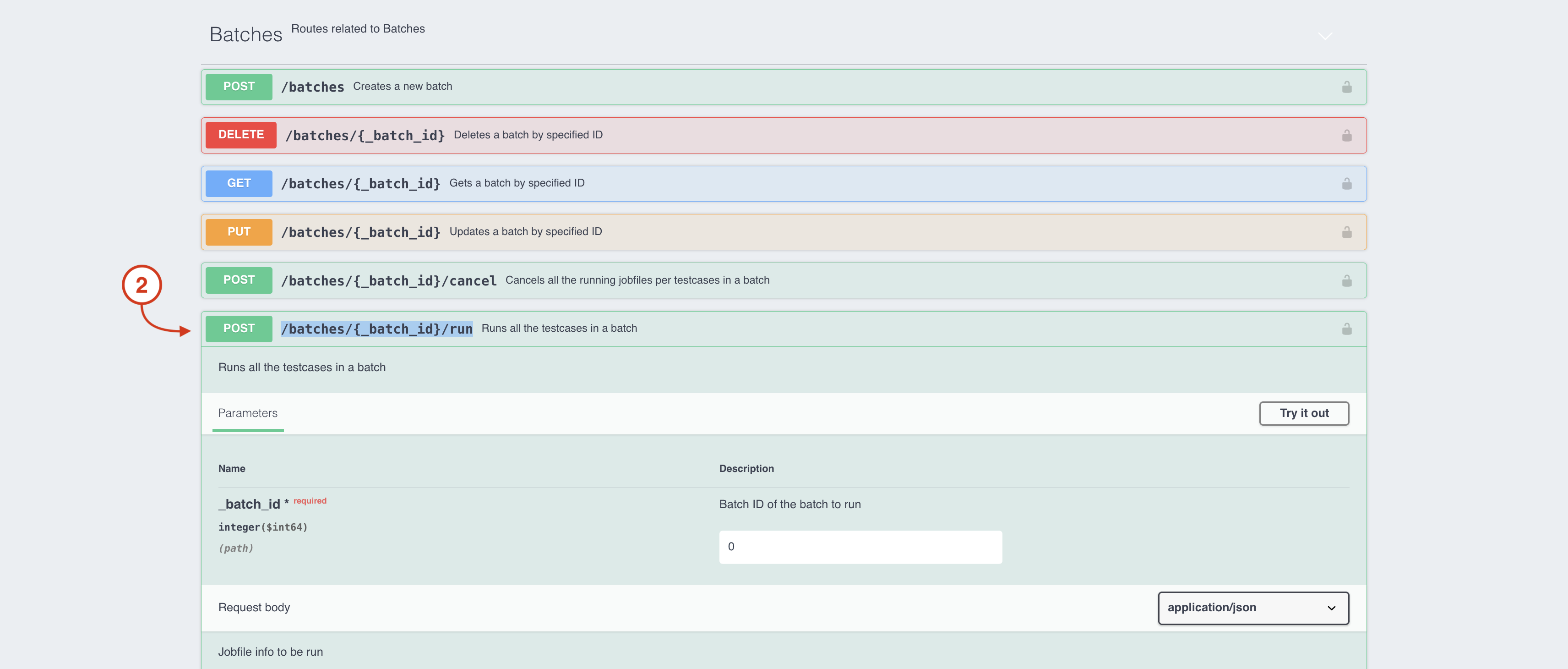

2. Click on the /batches/{_batch_id}/run entry to expand it



Notice that this API endpoint Runs all the testcases in a batch, identified by a provided batch ID. You'll need to get the batch ID from the desired batch in your CXTM project. Keep the swagger browser window open and follow the next steps to identify the batch ID from your project.

Step 5 - Navigate to your CXTM Project's Batches page

Return to your CXTM browser window

1. Open the sidebar if not already open
2. Scrolldown until you locate the heading Test Cases

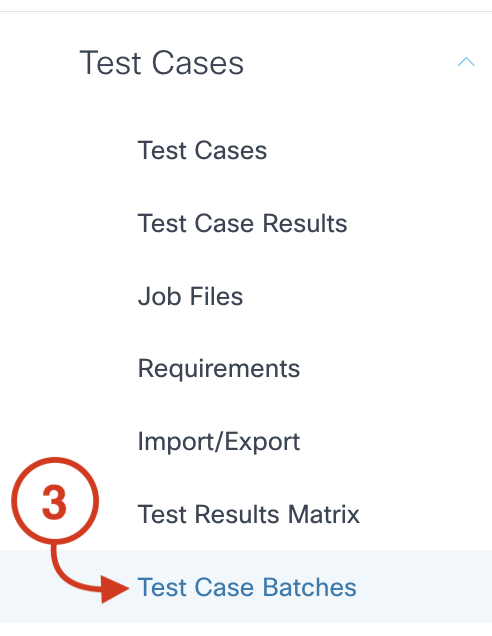

3. Under Test Cases, click Test Case Batches

Step 6 - Identify the batch ID

From your project's Batches page:

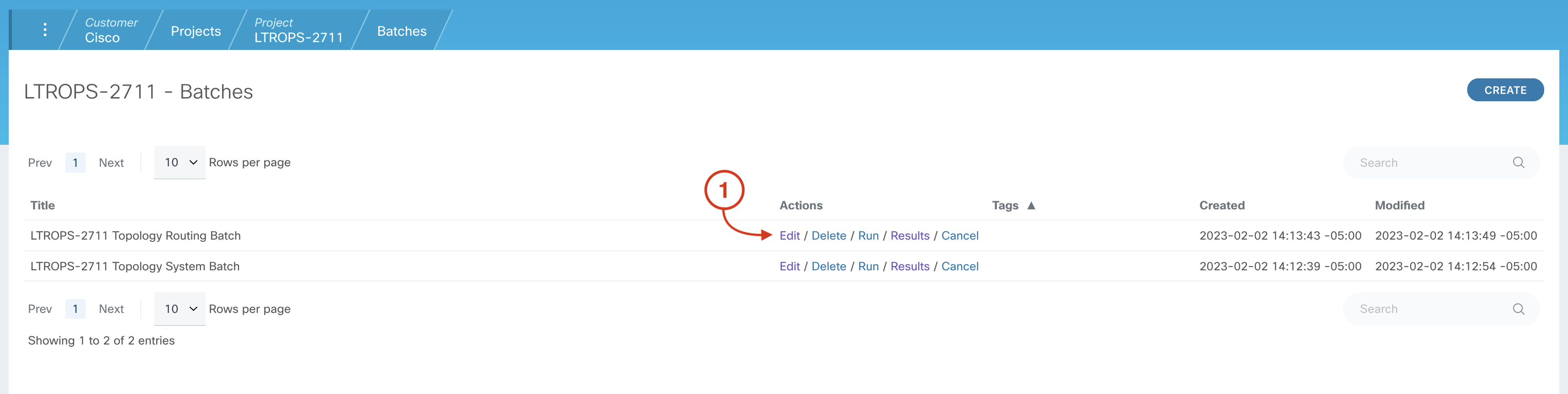

1. Click on the Edit button for the LTROPS-2711 Topology Routing Batch

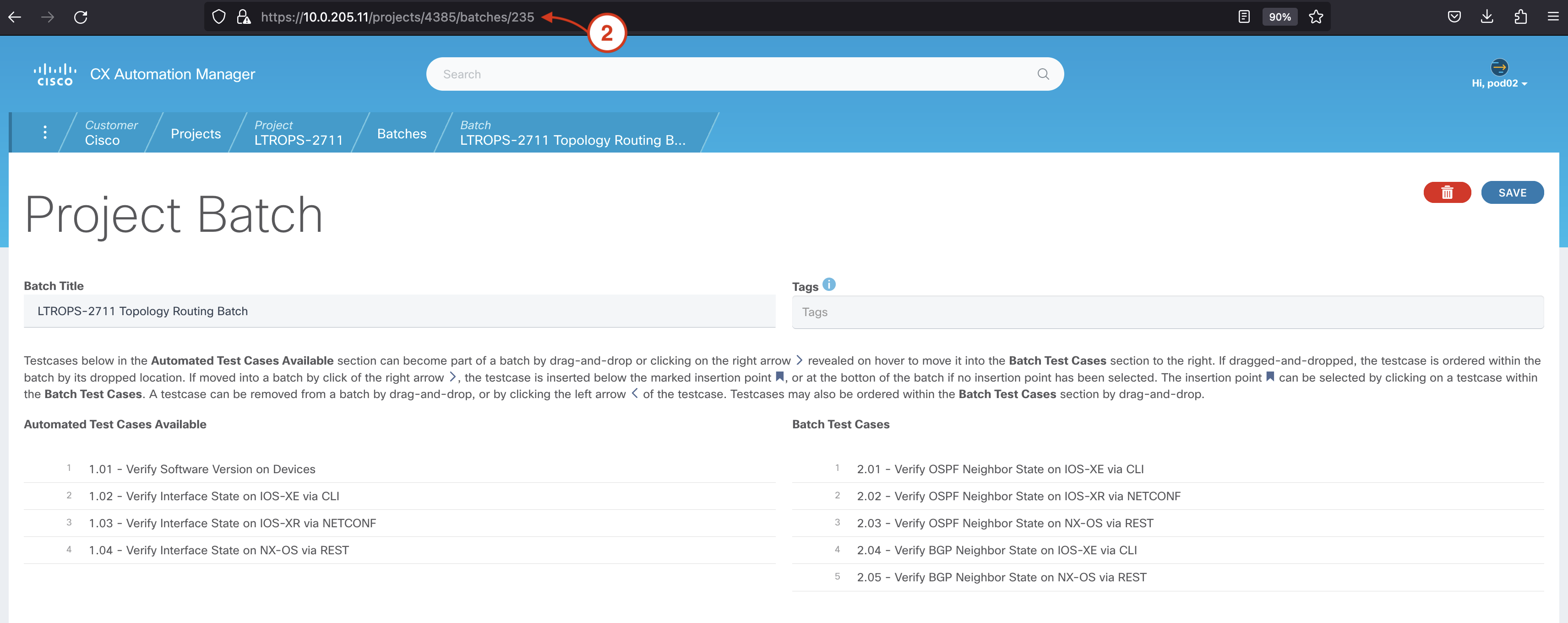

2. Collect the batch ID for the LTROPS-2711 Topology Routing Batch directly from the URL ("235" in this example)




3. Copy this batch ID and return to the swagger page

Step 7 - Execute the API call from swagger

From your the swagger page:

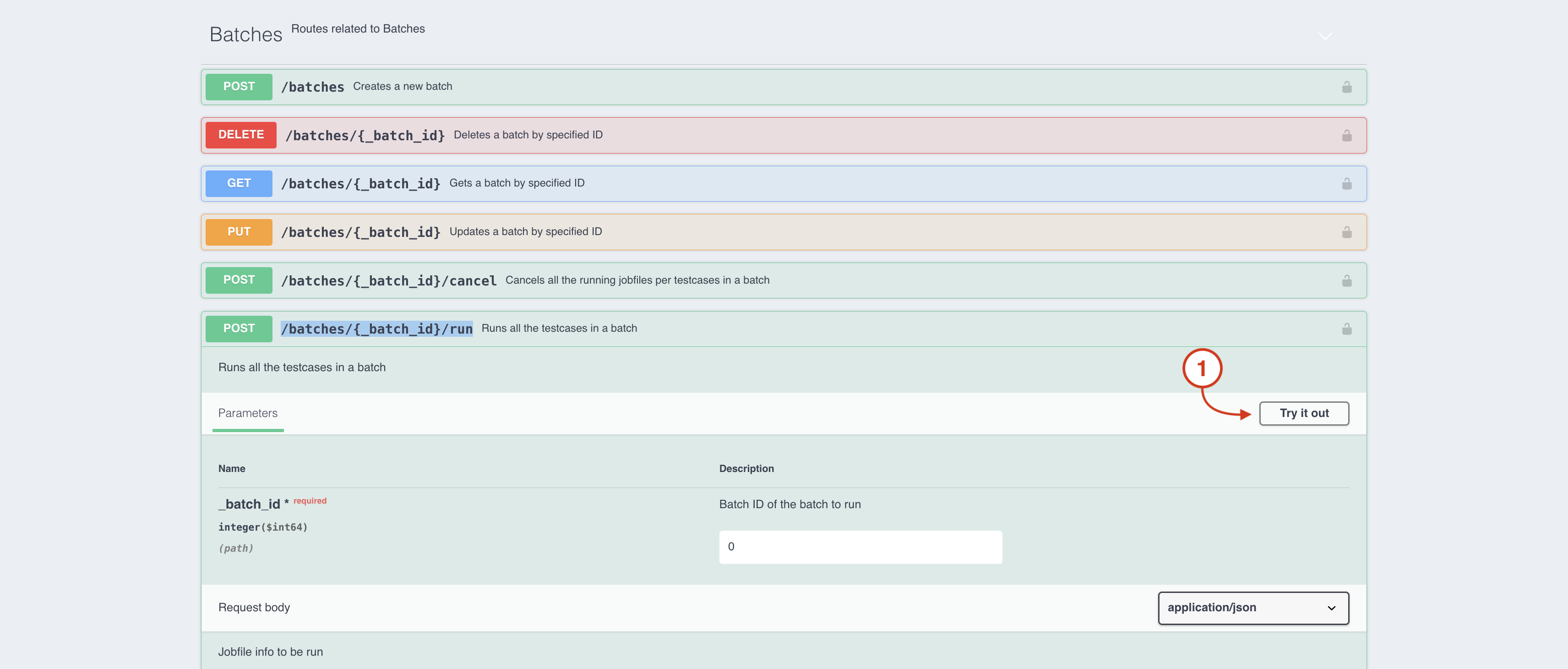

1. Click on the Try it out button for the the exanded /batches/{_batch_id}/run API endpoint

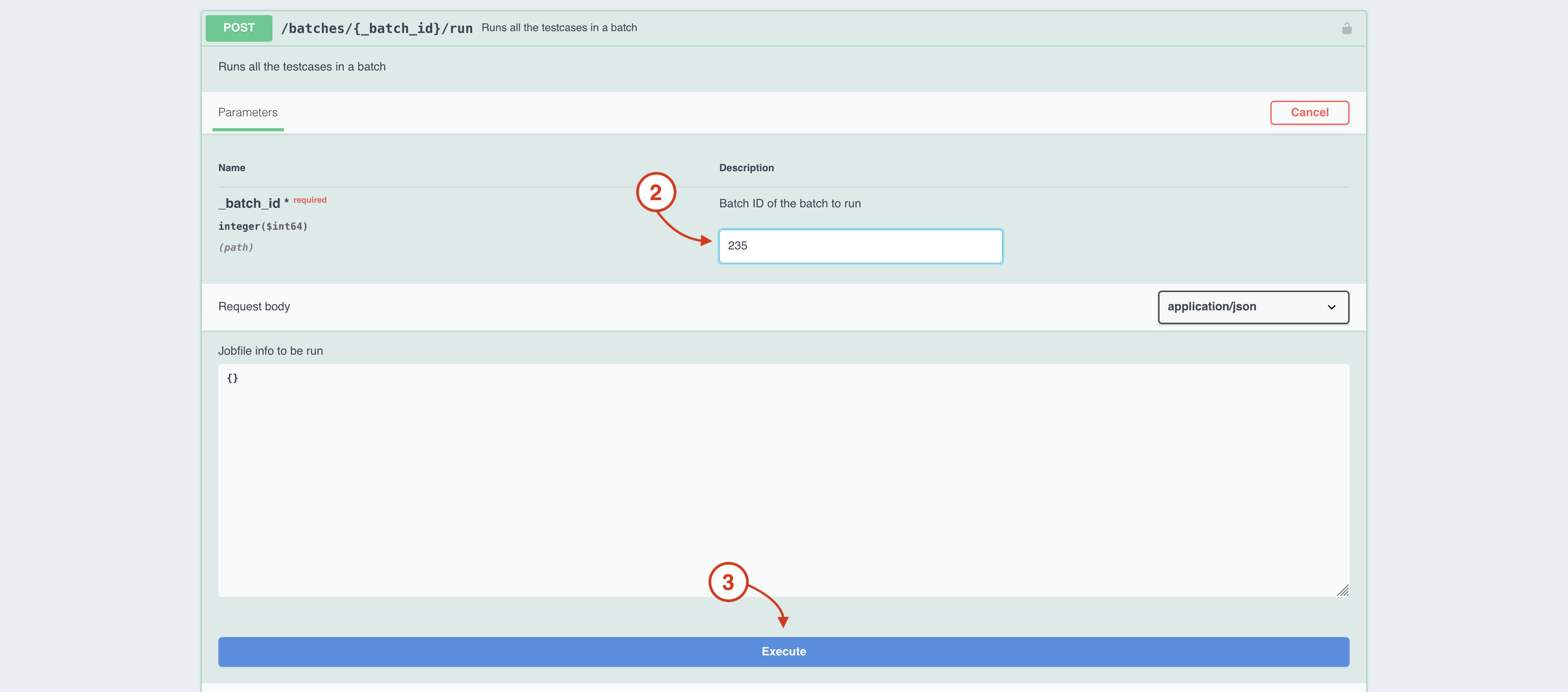

2. Enter the Batch ID into the Batch ID of the batch to run field
3. Click the Execute button




4. Confirm that you received a 201 status Code.

Notice the Request URL provided. This is the same Request URL used in your pipeline.


5. Return to your CXTM browser.

Step 8 - Return to your project Batches page

From the LTROPS-2711 Topology Routing Batch batch page:

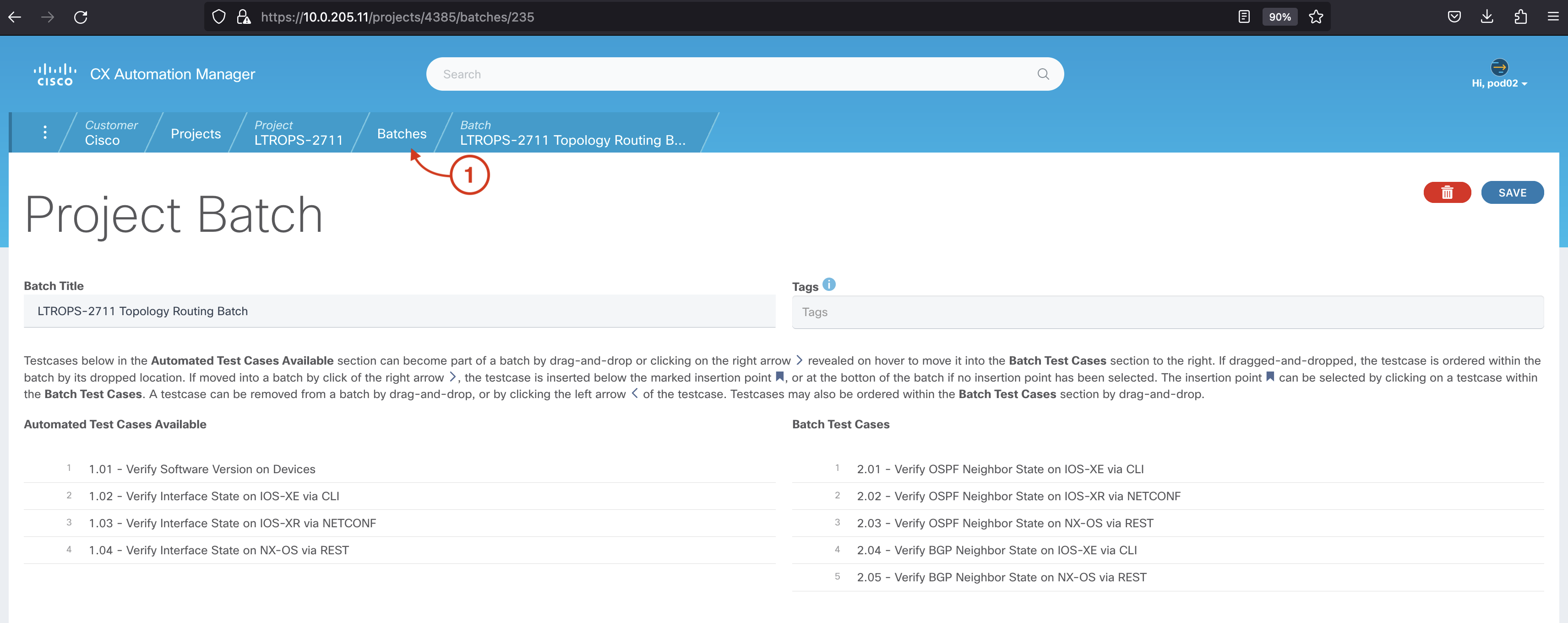

1. Click on the Batches tab in the navigation breadcrumbs to return to the project Batches page




2. Click on the Results link for the LTROPS-2711 Topology Routing Batch batch




3. Confirm that the test case belonging to the LTROPS-2711 Topology Routing Batch batch are running

Congratulations! You've completed all the sections of this lab. Thanks again, and we hope you've enjoyed Cisco Live!
